Amplifier 4-channel - JBL Stage GT90041 - Power 1480W peak

JBL Stage GT90041 is a powerful and compact 4-channel Class D car amplifier, designed to deliver impressive volume and precision in the car's sound system. It can be used to drive speakers in all four channels or bridged to two channels to run a subwoofer setup. The amplifier features adjustable filters (high-pass and low-pass), bass boost capability, and is equipped with comprehensive protection against overload, short circuit, and incorrect voltage conditions. It is ideal for the car enthusiast who wants high performance without compromising on installation or sound quality.

SPECIFICATIONS:

• Max. power (peak): 1480W
• RMS power: 130W x 4 at 2 / 90W x 4 at 4 / 260W x 2 at 4 (bridged)
• Amplifier type: Class D (4-channel, bridgeable)
• Frequency range: 20 Hz -20 kHz (±1 dB)
• Total harmonic distortion (THD+N): 1%
• Input sensitivity: 0.2V -5V (low level) / 1V -25V (high level)

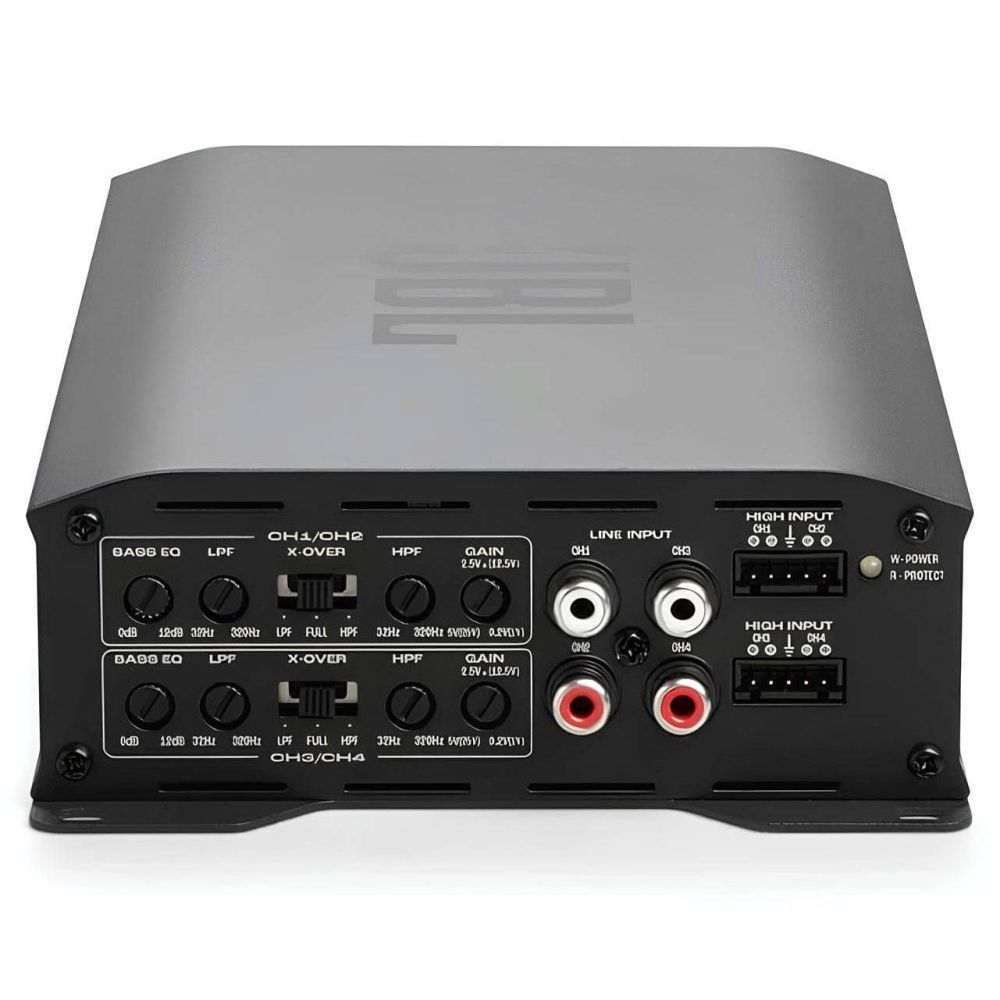

• Adjustable Bass EQ: 0-12 dB at 45 Hz
• High-/Low-pass filters: 32 Hz - 320 Hz (adjustable)
• Supply voltage: 9V - 16V DC
• Fuses: 2x 30 A
• Protection: Against short circuit, over- and undervoltage, and overheating
• Dimensions (WxHxD): 220x51.3x180 mm
• Weight: approx. 2.25 kg
