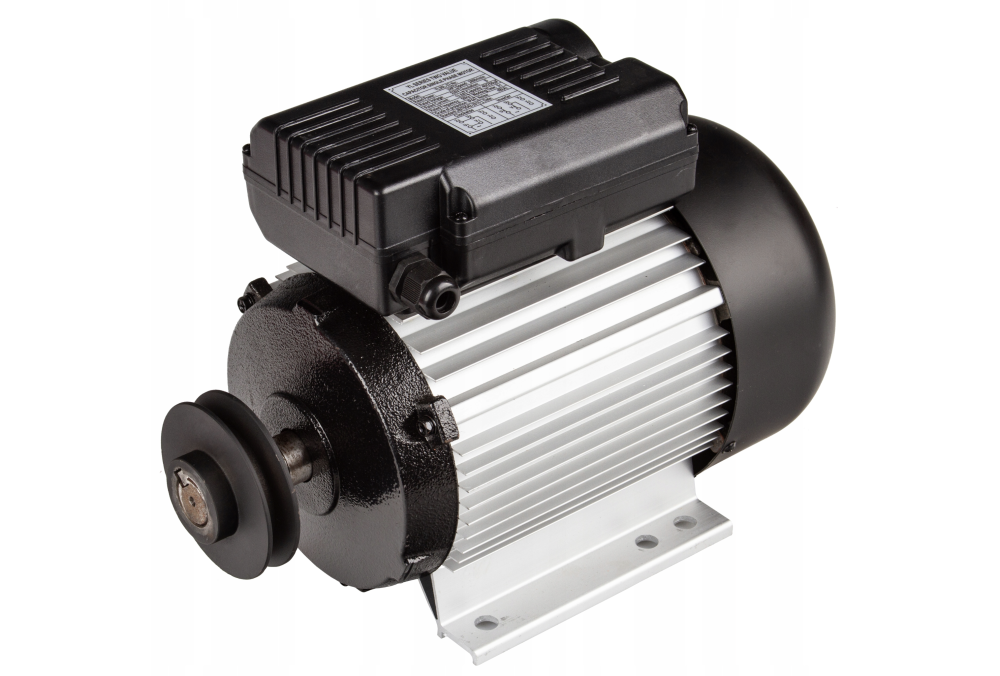

Electric motor single-phase 2.2 kW - 230V / 2880 rpm - Shaft diameter 24 mm

This powerful single-phase electric motor is suitable for various compressors. The motor delivers 2.2 kW and provides a speed of 2880 rpm, ensuring stable and efficient operation - even under continuous load (S1 duty). The electric motor runs on 230V and is air-cooled for optimal temperature control during operation. It is equipped with a dual capacitor system with both a start and run capacitor, providing reliable start-up and smooth running.

With protection class IP44 and insulation class B, the motor is protected against dust and water splashes and is suitable for use in workshop and industrial environments. The motor has a shaft diameter of 24 mm and a standard mounting dimension of 12.5x14 cm, making it easy to install as a replacement motor. The operating temperature range is 0-40 °C, and the maximum current consumption is approx. 14A.

SPECIFICATIONS:

• Motor power: 2.2 kW

• Horsepower: 3HP

• Speed: 2880 rpm

• Power supply: 230V / 50 Hz

• Motor type: Single-phase

• Shaft diameter: 24 mm

• Distance between mounting bolts: 12.5x14 cm

• Protection class: IP44, insulation class B

• Start capacitor: 150-300 µF

• Run capacitor: 40-60 µF

• Max. current consumption: approx. 14A

• Duty cycle: S1-10

• Gross weight: approx. 17 kg

• Operating temperature: 0-40 °C

• Air-cooled
